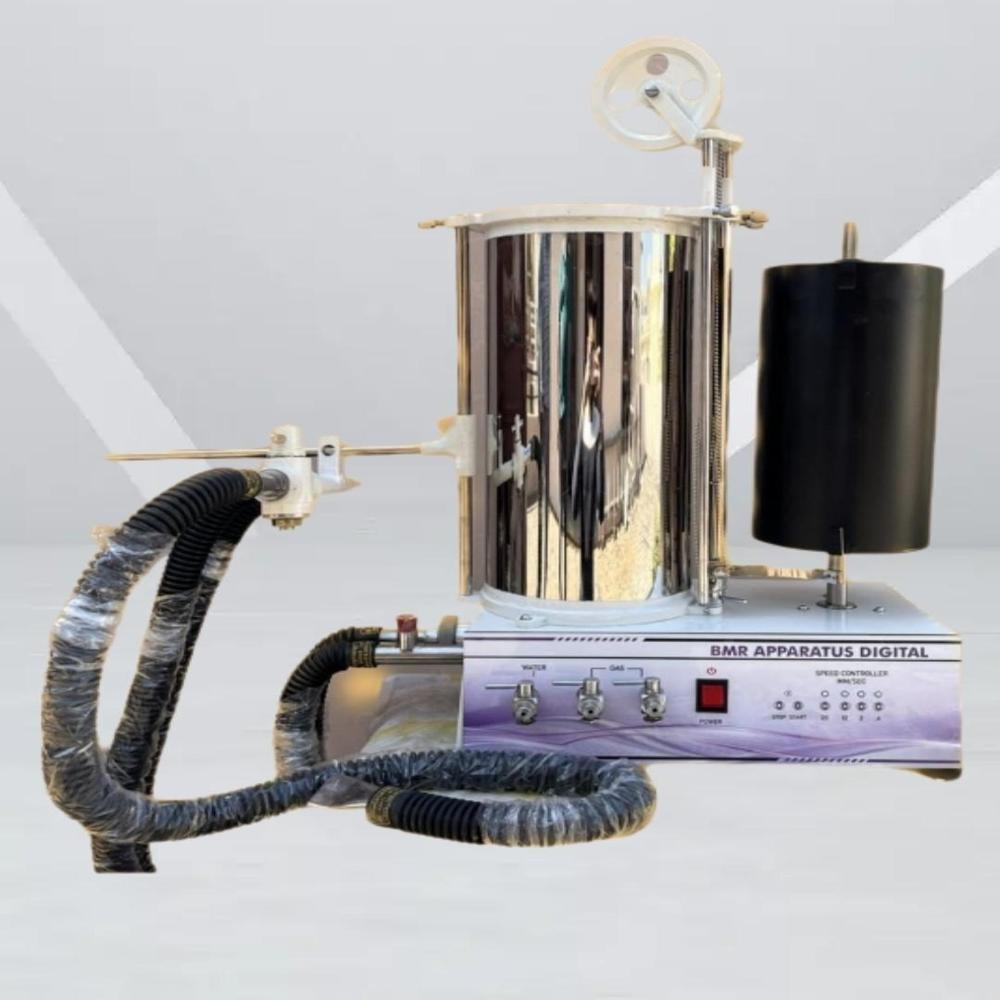

basal metabolism apparatus ( digital )

Get a Price/Quote

basal metabolism apparatus ( digital ) Specification

Capacity
1 Person (Standard subject volume)

Voltage
220V AC

Feature
Digital operation, high accuracy reading, stable performance, easy-to-use switches

Temperature Range
15C to 45C (Adjustable)

Power Source
Electric

Frequency
50 Hz

Model No
BMR-DIGI-2024

Automation Grade
Semi-Automatic

Accuracy
1% of Full Scale

Measurement Range
1200 - 3000 kcal/day

Core Components
Digital Display Unit, Spirometer, Water Bath, Gas Flow Meter, Tubing Set

Equipment Materials
Stainless Steel, ABS Plastic, Powder-Coated Metal

Type
Basal Metabolism Apparatus (Digital)

Usage
Measurement of Basal Metabolic Rate (BMR) in laboratory and clinical applications

Display Type
Digital LED/LCD Display

Dimension (L*W*H)
Approx. 600 mm x 450 mm x 500 mm

Weight
Approx. 15-20 kg

Sample Throughput
Single-subject capacity per analysis

Compliance
CE Marked, ISO 13485 Certified

Gas Flow Control
Integrated precision needle valve for O2/CO2 adjustment

User Interface
Soft-touch operational keys with indicator lights

Ambient Temperature Range
10C to 40C

Heat Loss Compensation
Double-walled water jacket for precise temperature control

Safety Mechanism
Over-temperature cut-off & alarm system

Recording Method
Digital with optional PC interface

Data Storage
Onboard data saving for up to 20 readings

Calibration
Electronic calibration option available

About basal metabolism apparatus ( digital )

Spirometer Capacity: 6 liters with a chain-compensated counter-balance float

Kymograph Unit: Electric recording drum with 2 to 4 selectable speeds (e.g., 1 rev in 4 minutes or 20 minutes)

Recording Mechanism: Gravity-writing ink pen adjustable via a bottom lever

CO2 Absorption: Central soda-lime container with secure screw connections

Valves & Cocks: Easily accessible enclosed valves, drain cocks, and a sampling cock at the mouthpiece

Power / Voltage: Operates on standard 220240 V AC, 50 Hz

Accessories Included: Corrugated rubber breathing tubes, mouthpiece, nose clip, and paper charts

Experience Precision with Heat Loss Compensation

The BMR-DIGI-2024 utilises a double-walled water jacket to maintain stable sample temperature, reducing external temperature fluctuations. This feature ensures highly accurate BMR assessments vital for metabolic research and clinical evaluations. With adjustable temperature settings from 15C to 45C, users can customise experiments according to their specific requirements, benefitting from consistent and reproducible results every time.

Intuitive Operation and Reliable Safety

Designed for ease-of-use, the apparatus is equipped with soft-touch operational keys, clear indicator lights, and a digital LED/LCD display. Built-in safety features, including an over-temperature cut-off and alarm system, protect both operators and samples. Precision needle valves allow for accurate O2/CO2 adjustment, enhancing experimental control during each analysis.

Comprehensive Data Management

Data accuracy and accessibility are maximised with electronic calibration and onboard memory that can store up to 20 readings. An optional PC interface further facilitates seamless digital recording and longitudinal tracking of BMR measurements, supporting laboratory workflow and compliance needs.

FAQ's of basal metabolism apparatus ( digital ):

Q: How does the basal metabolism apparatus ensure temperature stability during measurements?

A: The apparatus features a double-walled water jacket for heat loss compensation, delivering highly precise temperature control throughout the measurement process. This design minimises external influences, ensuring consistent sample conditions and reliable data.

Q: What is the process for calibrating the BMR-DIGI-2024 device?

A: Calibration is achieved electronically with the device's built-in function, streamlining setup and maintaining measurement accuracy. This allows users to perform routine checks without the need for complex manual adjustments.

Q: When should the over-temperature safety mechanism be utilised?

A: The over-temperature cut-off and alarm system automatically engage when the apparatus exceeds safe operating temperatures, safeguarding both the sample and user. This mechanism is always active during operation, providing continuous protection.

Q: Where can this basal metabolism apparatus be applied?

A: The BMR-DIGI-2024 is suitable for use in laboratory and clinical settings where precise basal metabolic rate measurements are required. Its design supports applications in both research institutions and healthcare facilities.

Q: What are the benefits of using a digital recording and PC interface?

A: Digital recording ensures high accuracy and reproducibility. The optional PC interface streamlines data management, enabling detailed analysis, secure data storage, and report generation-enhancing research or diagnostic workflows.

Q: How does the gas flow control system enhance the measurement process?

A: With its integrated precision needle valve, the apparatus allows accurate adjustment of O2 and CO2 levels. This fine-tuning capability is crucial for maintaining optimal gas mixtures, leading to more dependable and repeatable BMR results.

Q: What is the standard capacity and subject volume for each analysis?

A: The device is designed for single-subject analysis, ensuring each measurement session is focused and highly accurate, accommodating standard adult subject volumes for reliable basal metabolic rate assessment.
